P430i
  • P430i

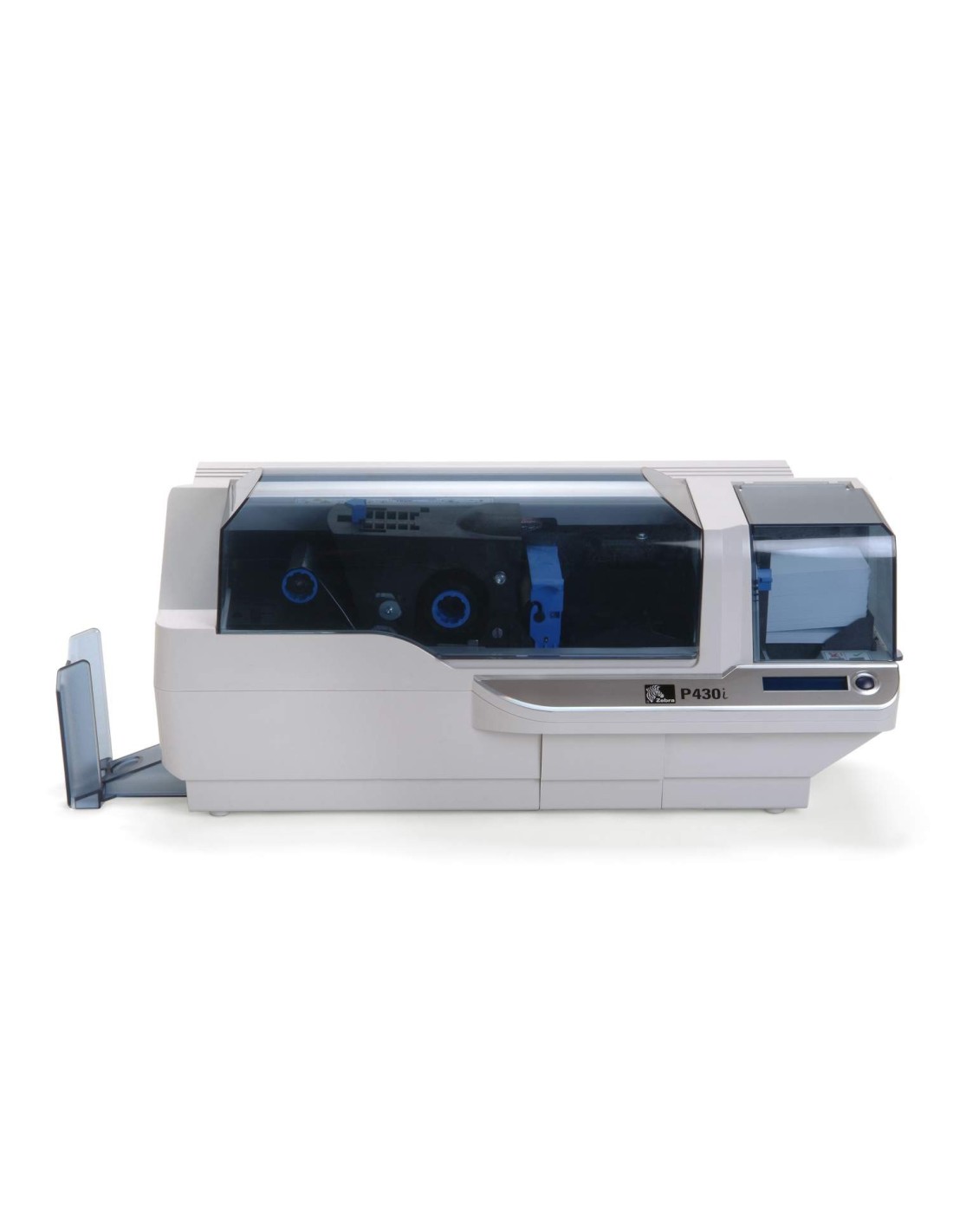

Zebra P430i

Zebra P430i dual side printer: the P430i delivers reliability and performance for high-volume card production

€2,279.00
Tax excluded
Model
Quantity
Not Available



Single or Dual-sided Printing
Dual-sided
Single-sided
Color Capability
Full Color
Monochrome
Print Method
Direct-to-Card Dye Sublimation
Lamination
None
Card Feeder
Integrated Card Feeder
Card Feeder/Hopper Capacity
Card feeder capacity: 100 cards (30 mil)
Card output hopper capacity: 100 cards (30 mil)
High capacity card feeder: 220 card (30 mil)
Memory
20 MB memory (standard)
Print speed
102 cards/hr (full color, dual-sided)
130 cards/hr (full color, single-sided)
MEDIA CHARACTERISTICS
Ribbons
Zebra True Colours iSeries intelligent technology media
YMCKOK: 170 images/roll
YMCKO: 200 and 330 images/roll
1/2 Panel YMC Full KO: 450 images/roll
KdO: 500 images/roll
KrO: 500 images/roll
Overlay varnishes: clear and hologram: 350 images/roll
Monochrome ribbon: 1500 and 1000 images/roll
OPERATING CHARACTERISTICS
Operating temperature
60° F (15° C) to 86° F (30° C)
Storage temperatures
23° F (5° C) to 158° F (70° C)
Operating humidity
20% to 65% non-condensing
Storage humidity
23°F to 158°F (5°C to 70°C)
Electrical
100 - 240 Volts AC, 50 - 60 Hz (auto switching)
Ventilation: Free air
Agency approvals
FCC Class A, CE, UL, CUL, CCC approved
PHYSICAL CHARACTERISTICS
Width
26" (660 mm)
Height
10.1" (256 mm)
Depth
9.4" (239 mm)
Weight
20 lbs (9.1 kg)
RELATED PRODUCTS
Card Encoding Options
UHF Gen 2 RFID encoder
Smart card contact ISO 7816 encoder (30 mil cards only)
MIFARE/DESFire smart card contactless encoder (30 mil cards only)
Magnetic encoder, 3 track HiCo/LoCo (30 mil cards only)
Options
Built-in 10/100 Ethernet
High capacity card feeder: 220 cards (30 mil cards)
Extended warranty programs
Hot swap warranty programs (USA only)
Communication and Interface Capabilities
USB 1.1 (USB 2.0 compatible) cable included (standard)
Built-in 10/100 Ethernet (optional)
BAR CODES/SYMBOLOGIES
Linear
Code 39
Other Symbologies via Windows Driver
2-D PDF 417
EAN-8 and EAN-13
Interleaved 2-of-5
UPC-A
Fonts and Graphics
True Type fonts via Windows drivers
CARD DETAIL
Card Types
PVC, PVC Composite, UHF Gen 2 RFID, Adhesive backed
Magnetic stripe ISO 7811
Smart card contact and contactless
Card Size
CR80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Card Thickness
10 - 60 mil



Single or Dual-sided Printing

  • Dual-sided
  • Single-sided

Color Capability

  • Full Color
  • Monochrome

Print Method

  • Direct-to-Card Dye Sublimation

Lamination

  • None

Card Feeder

  • Integrated Card Feeder

Card Feeder/Hopper Capacity

  • Card feeder capacity: 100 cards (30 mil)
  • Card output hopper capacity: 100 cards (30 mil)
  • High capacity card feeder: 220 card (30 mil)

Memory

  • 20 MB memory (standard)
  • Print speed
  • 102 cards/hr (full color, dual-sided)
  • 130 cards/hr (full color, single-sided)

MEDIA CHARACTERISTICS
Ribbons

  • Zebra True Colours iSeries intelligent technology media
  • YMCKOK: 170 images/roll
  • YMCKO: 200 and 330 images/roll
  • 1/2 Panel YMC Full KO: 450 images/roll
  • KdO: 500 images/roll
  • KrO: 500 images/roll
  • Overlay varnishes: clear and hologram: 350 images/roll
  • Monochrome ribbon: 1500 and 1000 images/roll

OPERATING CHARACTERISTICS
Operating temperature

  • 60° F (15° C) to 86° F (30° C)
  • Storage temperatures
  • 23° F (5° C) to 158° F (70° C)

Operating humidity

  • 20% to 65% non-condensing

Storage humidity

  • 23°F to 158°F (5°C to 70°C)

Electrical

  • 100 - 240 Volts AC, 50 - 60 Hz (auto switching)
  • Ventilation: Free air

Agency approvals

  • FCC Class A, CE, UL, CUL, CCC approved

PHYSICAL CHARACTERISTICS
Width

  • 26" (660 mm)

Height

  • 10.1" (256 mm)

Depth

  • 9.4" (239 mm)

Weight

  • 20 lbs (9.1 kg)

RELATED PRODUCTS
Card Encoding Options

  • UHF Gen 2 RFID encoder
  • Smart card contact ISO 7816 encoder (30 mil cards only)
  • MIFARE/DESFire smart card contactless encoder (30 mil cards only)
  • Magnetic encoder, 3 track HiCo/LoCo (30 mil cards only)

Options

  • Built-in 10/100 Ethernet
  • High capacity card feeder: 220 cards (30 mil cards)
  • Extended warranty programs
  • Hot swap warranty programs (USA only)
  • Communication and Interface Capabilities
  • USB 1.1 (USB 2.0 compatible) cable included (standard)
  • Built-in 10/100 Ethernet (optional)

BAR CODES/SYMBOLOGIES

  • Linear
  • Code 39
  • Other Symbologies via Windows Driver
  • 2-D PDF 417
  • EAN-8 and EAN-13
  • Interleaved 2-of-5
  • UPC-A

Fonts and Graphics

  • True Type fonts via Windows drivers

CARD DETAIL
Card Types

  • PVC, PVC Composite, UHF Gen 2 RFID, Adhesive backed
  • Magnetic stripe ISO 7811
  • Smart card contact and contactless

Card Size

  • CR80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)

Card Thickness

  • 10 - 60 mil





P430i-0000A-ID0

Specific References

Download

Brochure P430i

Brochure Zebra P430i [it]

Download (0)
