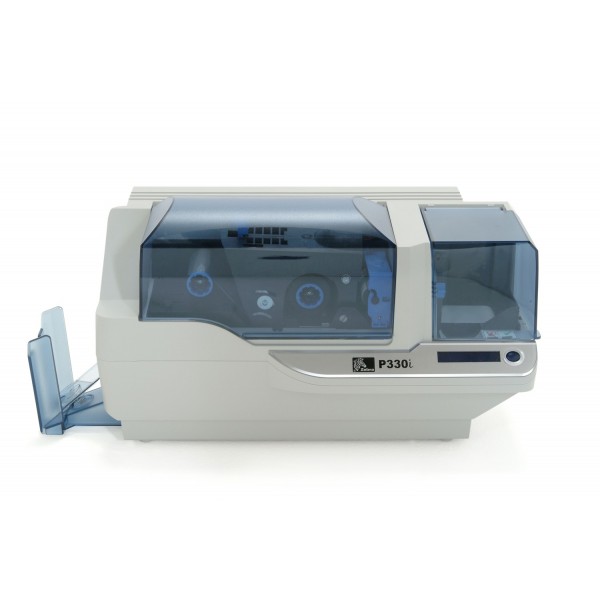

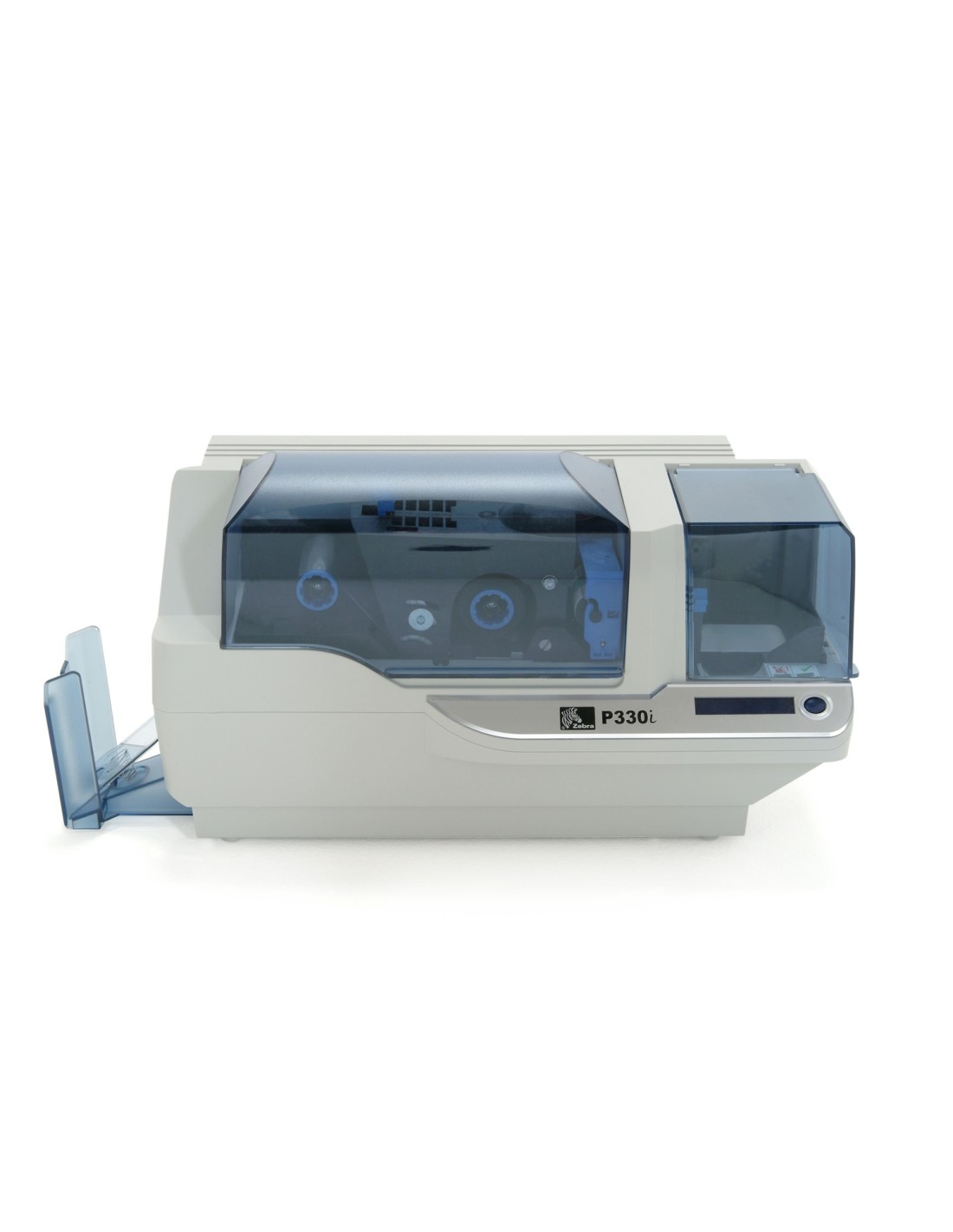

Zebra P330i

Zebra P330i:the plastic card single side printer full-color card printer most powerful and flexible in its class

€1,715.00
Tax excluded
Model
Quantity
Not Available

Single or Dual-sided Printing

  • Single-sided

Color Capability

  • Full Color
  • Monochrome

Print Method

  • Direct-to-Card Dye Sublimation

Lamination

  • None

Card Feeder

  • Integrated Card Feeder

Card Feeder/Hopper Capacity

  • Card feeder capacity: 100 cards (30 mil)
  • Card output hopper capacity: 100 cards (30 mil)
  • High capacity card feeder: 220 cards (30 mil) (optional)

Memory

  • 20 MB memory (standard)

Print speed

  • 144 cards/hr (full color, single-sided)
  • 692 cards/hr (monochrome black)

MEDIA CHARACTERISTICS
Ribbons

  • Zebra True Colours iSeries intelligent technology media
  • Monochrome: 1500 and 1000 cards/roll
  • KdO and KrO: 500 cards/roll
  • YMCK: 400 cards/roll
  • YMCKO: 200 & 330 cards/roll
  • 1/2 panel YMCKO: 450 cards/roll
  • Overlay varnishes (clear and hologram): 350 cards/roll

OPERATING CHARACTERISTICS
Operating temperature

  • 60° F (15° C) to 86° F (30° C)

Storage temperatures

  • 23° F (-5° C) to 158° F (70° C)

Operating humidity

  • 20% to 65% non condensing

Storage humidity

  • 20% to 70% non-condensing

Electrical

  • 100-240 Volts AC, 50-60 Hz (auto switching)
  • Ventilation: Free air
  • Agency approvals
  • FCC Class A, CE, UL, CUL, CCC approved

PHYSICAL CHARACTERISTICS
Width

  • 18.2" (462 mm)

Height

  • 10.1" (256 mm)

Depth

  • 9.4" (239 mm)

Weight

  • 15.5 lbs (7.0 kg)

RELATED PRODUCTS
Card Encoding Options

  • UHF Gen 2 RFID encoder
  • Smart card contact station (30 mil cards only)
  • Smart card contact encoder ISO 7816
  • MIFARE/DESFire contactless smart card encoder (30 mil cards only)
  • Magnetic encoder, 3 track HiCo/LoCo (30 mil cards only)

Options

  • Built-in 10/100 Ethernet
  • High capacity card feeder - 220 cards (30 mil)

Extended warranty program

  • Hot swap warranty program (USA only)
  • Communication and Interface Capabilities
  • USB 1.1 (USB 2.0 compatible) cable included (standard)
  • Built-in 10/100 Ethernet (optional)

BAR CODES/SYMBOLOGIES

  • Linear
  • Code 39
  • Interleaved 2-of-5
  • UPC-A
  • EAN-8 and EAN-13
  • 2-D PDF 417
  • Other Symbologies via Windows Driver

Fonts and Graphics

  • True Type fonts via Windows drivers

CARD DETAIL
Card Types

  • PVC, PVC Composite, UHF Gen 2 RFID, Adhesive backed
  • Magnetic stripe - ISO 7811
  • Smart card contact and contactless

Card Size

  • CR-80 - ISO 7810, 2.12" (54 mm) X 3.385" (86 mm)

Card Thickness

  • 10 - 60 mil



Single or Dual-sided Printing
Single-sided
Color Capability
Full Color
Monochrome
Print Method
Direct-to-Card Dye Sublimation
Lamination
None
Card Feeder
Integrated Card Feeder
Card Feeder/Hopper Capacity
Card feeder capacity: 100 cards (30 mil)
Card output hopper capacity: 100 cards (30 mil)
High capacity card feeder: 220 cards (30 mil) (optional)
Memory
20 MB memory (standard)
Print speed
144 cards/hr (full color, single-sided)
692 cards/hr (monochrome black)
MEDIA CHARACTERISTICS
Ribbons
Zebra True Colours iSeries intelligent technology media
Monochrome: 1500 and 1000 cards/roll
KdO and KrO: 500 cards/roll
YMCK: 400 cards/roll
YMCKO: 200 & 330 cards/roll
1/2 panel YMCKO: 450 cards/roll
Overlay varnishes (clear and hologram): 350 cards/roll
OPERATING CHARACTERISTICS
Operating temperature
60° F (15° C) to 86° F (30° C)
Storage temperatures
23° F (-5° C) to 158° F (70° C)
Operating humidity
20% to 65% non condensing
Storage humidity
20% to 70% non-condensing
Electrical
100-240 Volts AC, 50-60 Hz (auto switching)
Ventilation: Free air
Agency approvals
FCC Class A, CE, UL, CUL, CCC approved
PHYSICAL CHARACTERISTICS
Width
18.2" (462 mm)
Height
10.1" (256 mm)
Depth
9.4" (239 mm)
Weight
15.5 lbs (7.0 kg)
RELATED PRODUCTS
Card Encoding Options
UHF Gen 2 RFID encoder
Smart card contact station (30 mil cards only)
Smart card contact encoder ISO 7816
MIFARE/DESFire contactless smart card encoder (30 mil cards only)
Magnetic encoder, 3 track HiCo/LoCo (30 mil cards only)
Options
Built-in 10/100 Ethernet
High capacity card feeder - 220 cards (30 mil)
Extended warranty program
Hot swap warranty program (USA only)
Communication and Interface Capabilities
USB 1.1 (USB 2.0 compatible) cable included (standard)
Built-in 10/100 Ethernet (optional)
BAR CODES/SYMBOLOGIES
Linear
Code 39
Interleaved 2-of-5
UPC-A
EAN-8 and EAN-13
2-D PDF 417
Other Symbologies via Windows Driver
Fonts and Graphics
True Type fonts via Windows drivers
CARD DETAIL
Card Types
PVC, PVC Composite, UHF Gen 2 RFID, Adhesive backed
Magnetic stripe - ISO 7811
Smart card contact and contactless
Card Size
CR-80 - ISO 7810, 2.12" (54 mm) X 3.385" (86 mm)
Card Thickness
10 - 60 mil
