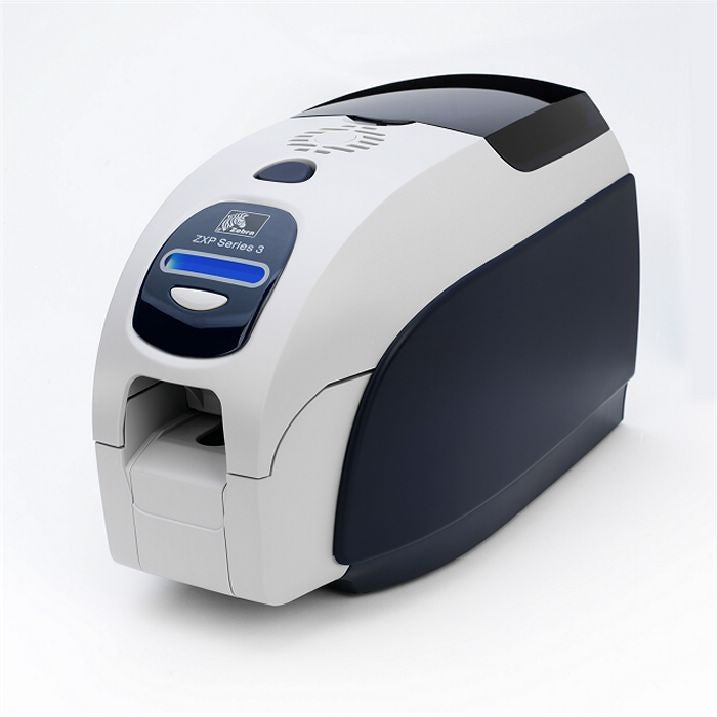

Zebra ZXP Series 3

Zebra ZXP Serie3 card printer

Single or Dual-sided Printing

• Dual-sided
• Single-sided

Color Capability

• Full Color
• Monochrome

Print Method

• Direct-to-Card Dye Sublimation

Lamination

• None

Card Feeder

• Integrated Card Feeder
• Card Feeder/Hopper Capacity
• CardSense single-card feeder

Resolution

• 300 dpi (12 dots/mm)
• Memory
• 32 MB memory standard

Print speed

• 750 cph, monochrome, single-sided
• 180 cph, color, single-sided
• 140 cph, color, dual-sided

1. MEDIA CHARACTERISTICS
2. Ribbons

• Zebra True Colours ix Series high-performance ribbons with intelligent media technology
• Load-N-Go drop-in ribbon cartridge

OPERATING CHARACTERISTICS
Operating temperature

• 60° F (15° C) to 86° F (30° C)

Storage temperatures

• 23° F (-5° C) to 158° F (70° C)

Operating humidity

• 20% to 65% non-condensing

Storage humidity

• 20% to 70% non-condensing

Electrical

• 100-240 Volts AC, 50-60 Hz (auto switching)
• Ventilation: Free air

Agency approvals

• FCC Class A, CE, UL, CUL approved

1. PHYSICAL CHARACTERISTICS
2. Width

• 7.9" (201 mm)

Height

• 12.2" (309 mm)

Depth

• 14.5" (368 mm)

Weight

• 12.2  lbs (5.53 kg)

RELATED PRODUCTS
Card Encoding Options

• Magnetic stripe encoder
• Smart card contact station
• Combined MIFARE
• Encoding over Ethernet and USB

Communication and Interface Capabilities

• USB V2.0 (cable included) - standard
• Built-in 10/100 Ehternet - optional
• BAR CODES/SYMBOLOGIES
• Linear
• Code 39
• Interleaved 2-of-5
• UPC-A
• 2-D PDF 417
• EAN-8 and EAN-13
• CARD DETAIL

Card Types

• PVC, PVC Composite
• Magnetic stripe ISO 7811
• Smart card contact and contactless (30 mil card only)

Card Size

• CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)

Card Thickness

• 30 mil
