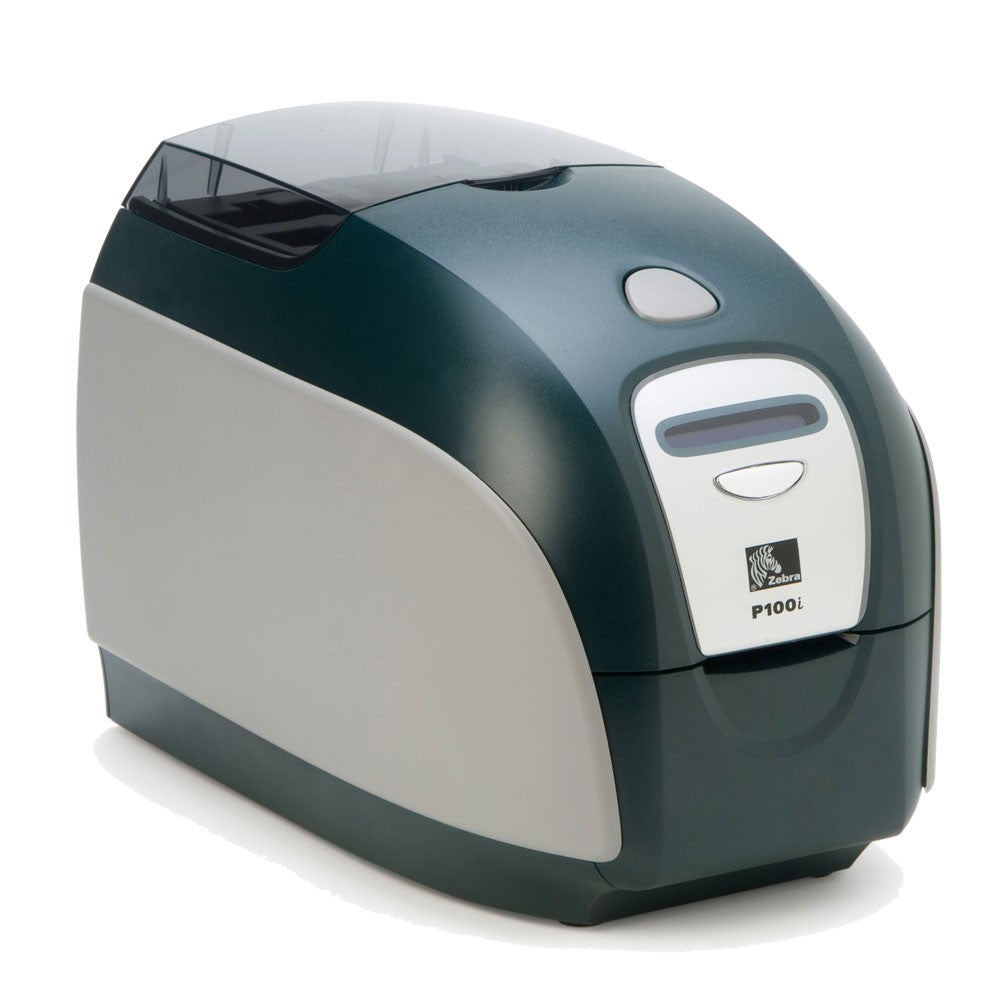

Zebra P100i



• Single-sided

Color Capability

• Full Color
• Monochrome

Print Method

• Direct-to-Card Dye Sublimation

Lamination

• None

Card Feeder

• Single Card Feeder
• Card Feeder/Hopper Capacity
• CardSense single-card feeder

Memory

• 16 MB image memory (standard)

Print speed

• 35 seconds/card (full color, single-sided)
• 6 seconds/card (mono, single-sided)

MEDIA CHARACTERISTICS

• Ribbons
• Zebra True Colours iSeries intelligent technology media
• Zebra True Colours iSeries Load-N-Go ribbon cartridge with integrated card cleaning roller
• YMCKO ribbon: 200 images/cartridge
• Monochrome ribbon: 1000 images/cartridge

OPERATING CHARACTERISTICS
Operating temperature

• 60° F (15° C) to 86° F (30° C)

Storage temperatures

• 23° F (-5° C) to 158° F (70° C)

Operating humidity

• 20% to 65% non-condensing

Storage humidity

• 20% to 70% non-condensing

Electrical

• 100 - 240 Volts AC, 50 - 60 Hz (auto switching)
• Ventilation: Free air

Agency approvals

• FCC Class A, CE, UL, CUL approved

PHYSICAL CHARACTERISTICS
Width

• 7.9" (201 mm)

Height

• 9.25" (23 mm)

Depth

• 12.9" (328 mm)

Weight

• 10  lbs (4.5 kg)

RELATED PRODUCTS
Card Encoding Options

• Magnetic encoder 3 track HiCo/LoCo (30 mil cards only)
• Smart card contact encoder ISO 7816 (EMV compliant)
• MIFARE smart card contactless encoder

Options

• Built-in 10/100 Ethernet
• Starter Kit: 200 - 30 mil PVC cards and 1 YMCKO ribbon cartridge
• Extended warranty programs
• Hot swap warranty program (USA only)

Communication and Interface Capabilities

• USB 1.1 (USB 2.0 compliant) cable included (standard)
• Built-in 10/100 Ethernet (optional)

BAR CODES/SYMBOLOGIES
Linear

• EAN-8 and EAN-13
• 2-D PDF 417
• Other Symbologies via Windows Driver
• Code 39
• Interleaved 2-of-5
• UPC-A

CARD DETAIL
Card Types

• PVC, PVC Composite
• Magnetic stripe ISO 7811
• Smart card contact and contactless (30 mil card only)

Card Size

• CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)

Card Thickness

• 20 - 40 mil
