Magnetic stripe Card Hi-Co Lo-Co encoder

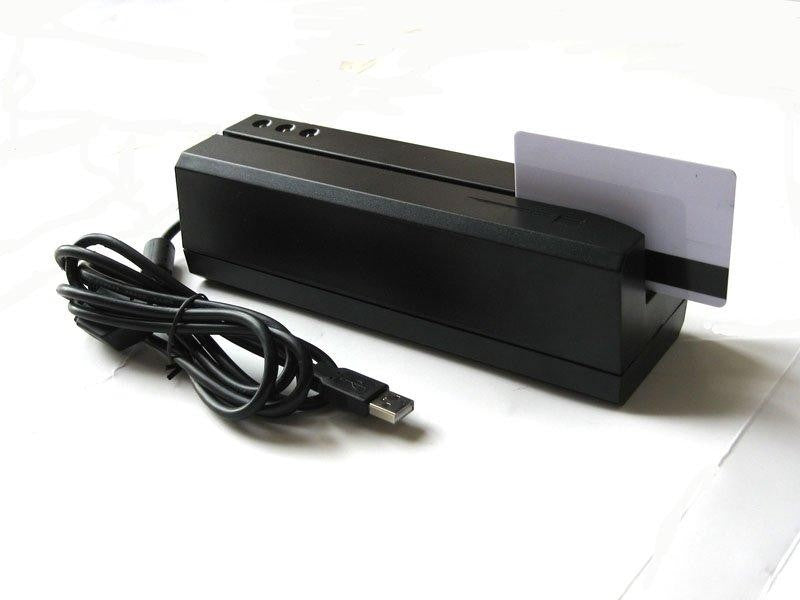

Manual Swipe Magnetic Card Reader/Writer is designed to offer a card reading/writing solution for ISO 7811/1~6 formats.  It reads and writes up to 3 tracks of data, e.g. decoding/encoding and verifying up to 3 tracks of data simultaneously.  Also, Reader/Writer provides a standard RS-232 interface to communicate with host system or other terminal computers.

Key features of Manual Swipe Magnetic Card Reader/Writer are:

Manual Swipe Magnetic Card Reader/Writer is ideal for credit card verification and various card related applications. Customer designed products are available for optional projects or joint ventures.

• Reading/Writing magnetic stripe card complied with ISO 7811/1~6 formats
• Manual Swipe to read and/or write card with RS-232 output
• Read/Write High and Low Coercive force of magnetic stripe (300~4000Oe)
• 5~35ips operational swipe speed of writing data
• 5~55ips operational swipe speed of reading data
• +24VDC+/-10%, 2.0A Max., external power adapter attached
• Writing and then verifying data on single, dual, or triple track in one swipe
• Programming software for various read/write performance
• High/Low Coercivity encoding circuitry selectable on screen
• Programmable leading bit, raw data, DMV/AAMVA, and user defined format
• Good size with dimensions of 210(L) x 60(W) x 65(H) mm
• CE, FCC, UL, cUL certified
