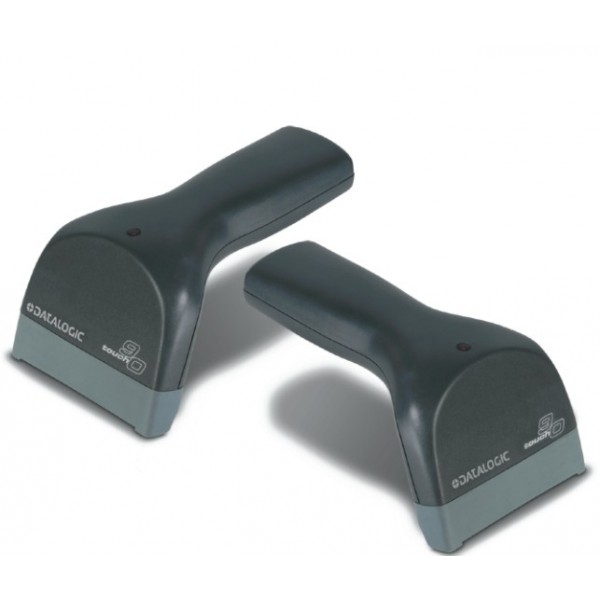

Datalogic Touch 90 USB
Datalogic Touch 90 USB
Datalogic Touch 90 USB
Datalogic Touch 90 USB

Datalogic Touch 90 USB

In stock
€70.15
Tax included

Datalogic Touch 90 USB





Decoding Capability
1D / Linear Codes
Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
Electrical
Current
Operating (Typical)
100 mA @ 5 VDC
Standby/Idle (Typical)
< 500 µA @ 5 VDC
Input Voltage
5 VDC +/- 5%
Environmental
Ambient Light
0 - 2,000 lux
Drop Resistance
Withstands repeated drops from 1.2 m / 3.9 ft onto a concrete surface
ESD Protection (Air Discharge)
16 kV
Humidity (Non-Condensing)
90%
Particulate and Water Sealing
IP30
Temperature
Operating
0 to 55 °C / 32 to 131 °F
Storage/Transport
-20 to 70 °C / -4 to 158 °F
Interfaces
Keyboard Wedge
65/90 Light
RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
65/90 Pro
USB
65/90 Light
Wand
65/90 Light
Physical Characteristics
Colors Available
Dark Grey
Other colors and custom logo options are available for minimum quantity purchase.
Dimensions
Touch 65
16.4 x 7.8 x 6.3 cm / 6.5 x 3.0 x 2.5 in
Touch 90
17.5 x 10.0 x 8.0 cm / 6.9 x 3.9 x 3.1 in
Weight
Touch 65
160.0 g / 5.6 oz
Touch 90
195.0 g / 6.9 oz
Reading Performance
Imager Sensor
CCD Solid-state 2048 pixels
Print Contrast Ratio (Minimum)
Light Models
25%
Pro Models
15%
Read Rate (Maximum)
256 reads/sec.
Reading Indicators
Beeper (Adjustable Tone)
Good Read LED
Resolution (Maximum)
Touch 65
0.100 mm / 4 mils
Touch 90
0.130 mm / 5 mils
Reading Ranges - Typical Depth of Field
Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
5 mils
0 to 2.5 cm / 0 to 1.0 in
7.5 mils
0 to 4.3 cm / 0 to 1.7 in
10 mils
0 to 5.0 cm / 0 to 2.0 in
13 mils
0 to 6.8 cm / 0 to 2.7 in
20 mils
0 to 8.0 cm / 0 to 3.2 in
Safety & Regulatory
Agency Approvals
The product meets necessary safety and regulatory approvals for its intended use.
The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance
Complies to China RoHS
Complies to EU RoHS
Utilities
Datalogic Aladdin™
Datalogic Aladdin configuration program is available for download at no charge
OPOS / JavaPOS
JavaPOS Utilities are available for download at no charge
OPOS Utilities are available for download at no charge
Warranty
5-Year Factory Warranty
