Tattoo rewrite
  • Tattoo rewrite

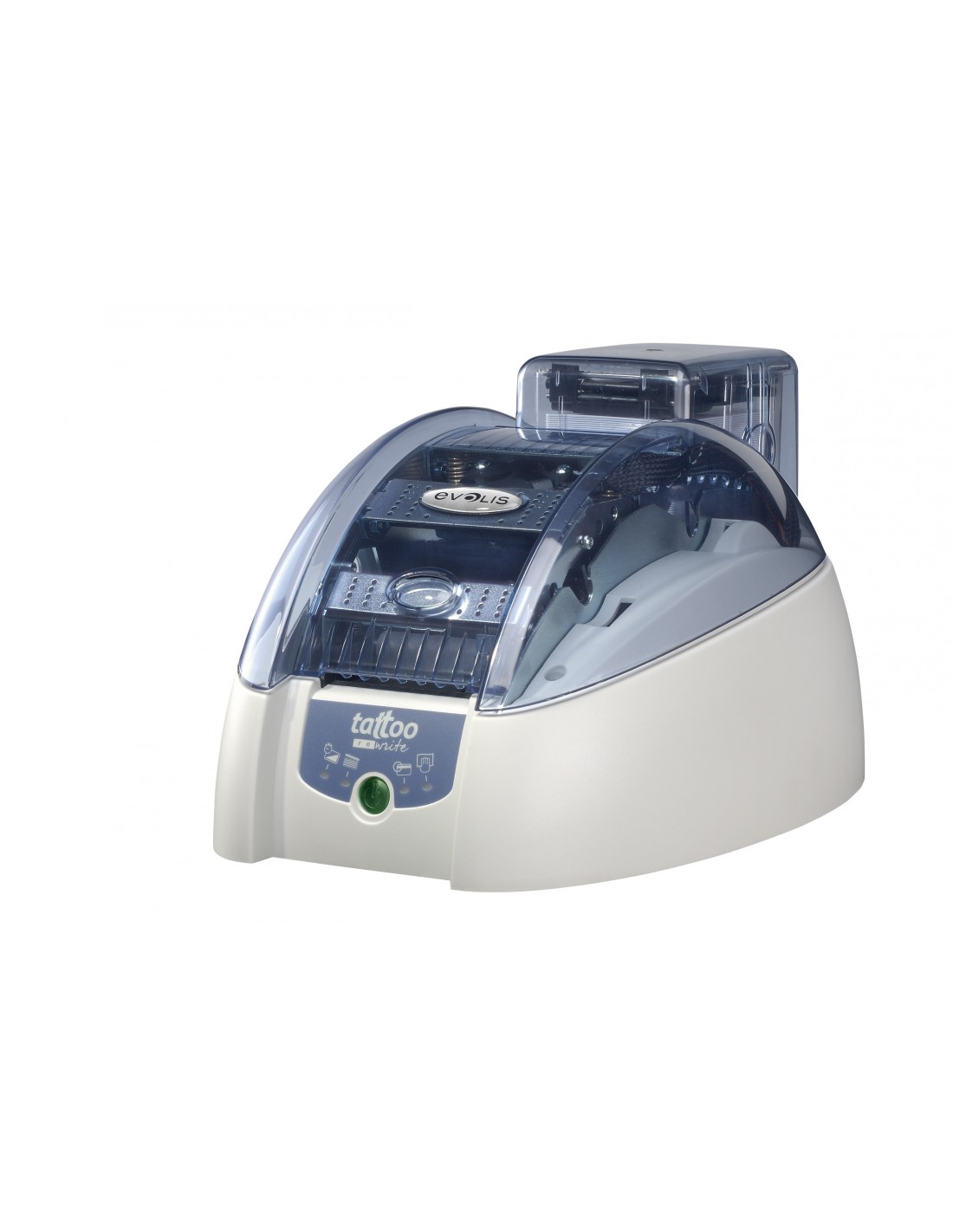

Evolis Tattoo rw - out of production

The next-generation printer for rewritable cards

€1,112.00
Tax excluded
Model
Quantity
Not Available



General specifications
300 dpi print head for premium quality printing (11.8 dots/mm)
USB & Ethernet connections
16 MB RAM
Detachable feeder with a capacity of 100 cards (0.76 mm or 30 mil)
Detachable output hopper with a capacity of 15 cards (0.76 mm or 30 mil)
1-Button and 4-LED control panel
Brilliant Blue cover
Other specifications
Encoding options
HiCo/LoCo Magnetic stripe encoder ISO 7811 or JIS2
Contactless encoder ISO14443A & B, Mifare, DesFire (USB connection)
Print Mode
Direct thermal printing and erasing on rewritable material
Maximum print area: 48 mm x 76 mm (1.89" x 2.99")
Erasing & Printing speed
8 seconds (manual)
12 seconds (card feeder)
3-Track ISO magnetic encoding: 4 seconds per card
Card feeding
Manual card insertion and delivery
Card-feeder insertion and delivery to removable hopper
Automated Mode: selects a card from the feeder if no card is inserted manually
Card formatCR-80 – ISO 7810 (53.98 mm x 85.60 mm – 2.125" x 3.37")
Card type
Rewritable thermochromic material
Mitsubishi Black & Blue
Ricoh upon request
Other material upon request and validation
Card thicknessFrom 0.5 mm to 0.76 mm (20 to 30 mil)
Resident fonts
Arial 100, Arial bold 100
Barcode – Code 39, 2/5 interleaved
Supported platforms
Windows 7 (32 & 64 bits), XP and Vista (32 & 64 bits)
Windows 2003 Server and Windows 2000 drivers available upon request - depending on system configuration
InterfaceUSB & Ethernet (USB cable supplied)
Printer form factor
Without output hopper: 166 mm (6.54") (H) x 290 mm (11.42") (L) x 187 mm (7.36") (W)
With output hopper: 166 mm (6.54") (H) x 368 mm (14.49") (L) x 187 mm (7.36") (W)
Printer weight2.4 Kg (5.3 lbs)
Power supply
Power supply: 100/240 V AC, 1.8 A, 50-60 Hz
Printer: 24 V DC, 3 A
Environmental conditions
Min/Max operating temperature: 15°/30°C (59°/86° F)
Humidity: 20% to 65% non-condensing
Min/Max storage temperature: -5°/+70°C (23°/158° F)
Storage humidity: 20% to 70% non-condensing
Operating ventilation: free air
Warranty2 years (printer and print head), limited to 15,000 inserted cards*
*Subject to observance of specific conditions and use of Evolis genuine consumables



General specifications



300 dpi print head for premium quality printing (11.8 dots/mm)

USB & Ethernet connections

16 MB RAM

Detachable feeder with a capacity of 100 cards (0.76 mm or 30 mil)

Detachable output hopper with a capacity of 15 cards (0.76 mm or 30 mil)

1-Button and 4-LED control panel

Brilliant Blue cover

Other specifications



Encoding options

HiCo/LoCo Magnetic stripe encoder ISO 7811 or JIS2

Contactless encoder ISO14443A & B, Mifare, DesFire (USB connection)

Print Mode

Direct thermal printing and erasing on rewritable material

Maximum print area: 48 mm x 76 mm (1.89" x 2.99")

Erasing & Printing speed

8 seconds (manual)

12 seconds (card feeder)

3-Track ISO magnetic encoding: 4 seconds per card

Card feeding

Manual card insertion and delivery

Card-feeder insertion and delivery to removable hopper

Automated Mode: selects a card from the feeder if no card is inserted manually

Card formatCR-80 – ISO 7810 (53.98 mm x 85.60 mm – 2.125" x 3.37")

Card type

Rewritable thermochromic material



Mitsubishi Black & Blue

Ricoh upon request

Other material upon request and validation

Card thicknessFrom 0.5 mm to 0.76 mm (20 to 30 mil)

Resident fonts

Arial 100, Arial bold 100

Barcode – Code 39, 2/5 interleaved

Supported platforms

Windows 7 (32 & 64 bits), XP and Vista (32 & 64 bits)

Windows 2003 Server and Windows 2000 drivers available upon request - depending on system configuration

InterfaceUSB & Ethernet (USB cable supplied)

Printer form factor

Without output hopper: 166 mm (6.54") (H) x 290 mm (11.42") (L) x 187 mm (7.36") (W)

With output hopper: 166 mm (6.54") (H) x 368 mm (14.49") (L) x 187 mm (7.36") (W)

Printer weight2.4 Kg (5.3 lbs)

Power supply

Power supply: 100/240 V AC, 1.8 A, 50-60 Hz

Printer: 24 V DC, 3 A

Environmental conditions

Min/Max operating temperature: 15°/30°C (59°/86° F)

Humidity: 20% to 65% non-condensing

Min/Max storage temperature: -5°/+70°C (23°/158° F)

Storage humidity: 20% to 70% non-condensing

Operating ventilation: free air

Warranty2 years (printer and print head), limited to 15,000 inserted cards*

*Subject to observance of specific conditions and use of Evolis genuine consumables
